how to measure watch strap width with digital caliper
The required strap width is the inside gap between the watch lugs, measured in millimetres. Use that lug-to-lug opening rather than guessing from the old strap, because the fit is decided by the case end width. Watch Obsession defines lug width as the gap between the lugs and recommends digital calliper inside jaws for direct measurement, especially when the size is not a standard one.
Answer first: the required strap width is based on the inside gap between the watch lugs
Measure the width between the lugs, not the outside of the case and not the strap length. A clear measurement in millimetres gives you the number to compare with replacement straps.
Protect the watch, clean the calliper and select millimetres
Before you measure, wipe any grit from the lugs and the calliper jaws so you are not pressing debris into the case. Set the tool to millimetres, since strap widths are normally compared in mm, and keep the contact light so you do not mark the finish.
Use inside jaws gently between the lugs and keep them square
Open the inside jaws just enough to sit across the gap, then close them gently until both tips touch the inner faces of the lugs. RS advises keeping the calliper perpendicular to the object, which helps you read the true width instead of a diagonal measurement.
Simple method
- Place the inside jaws inside the lug gap.
- Hold the tool square to the case.
- Read the width in millimetres.
- Repeat once to confirm the number.
Measure an existing strap separately at the case end if useful
If the watch already has a strap fitted, measure its case-end width as a cross-check. That can help when you are replacing a worn strap, but the lug gap still sets the size you need for the new one.
Explain non-standard widths and why guessing up or down can cause fit problems
Do not round the measurement up or down unless the supplier specifically guides you to do so. Non-standard widths are common, and even a small mismatch can leave the strap loose, force it into place, or stop it sitting neatly against the case.
Refer integrated bracelets and unusual curved fittings to the watch or strap supplier
Integrated bracelets, shaped end links and unusual curved fittings can behave differently from a plain straight strap. If the fitting is not a standard straight lug opening, ask the watch or strap supplier for guidance rather than forcing the jaws into place.

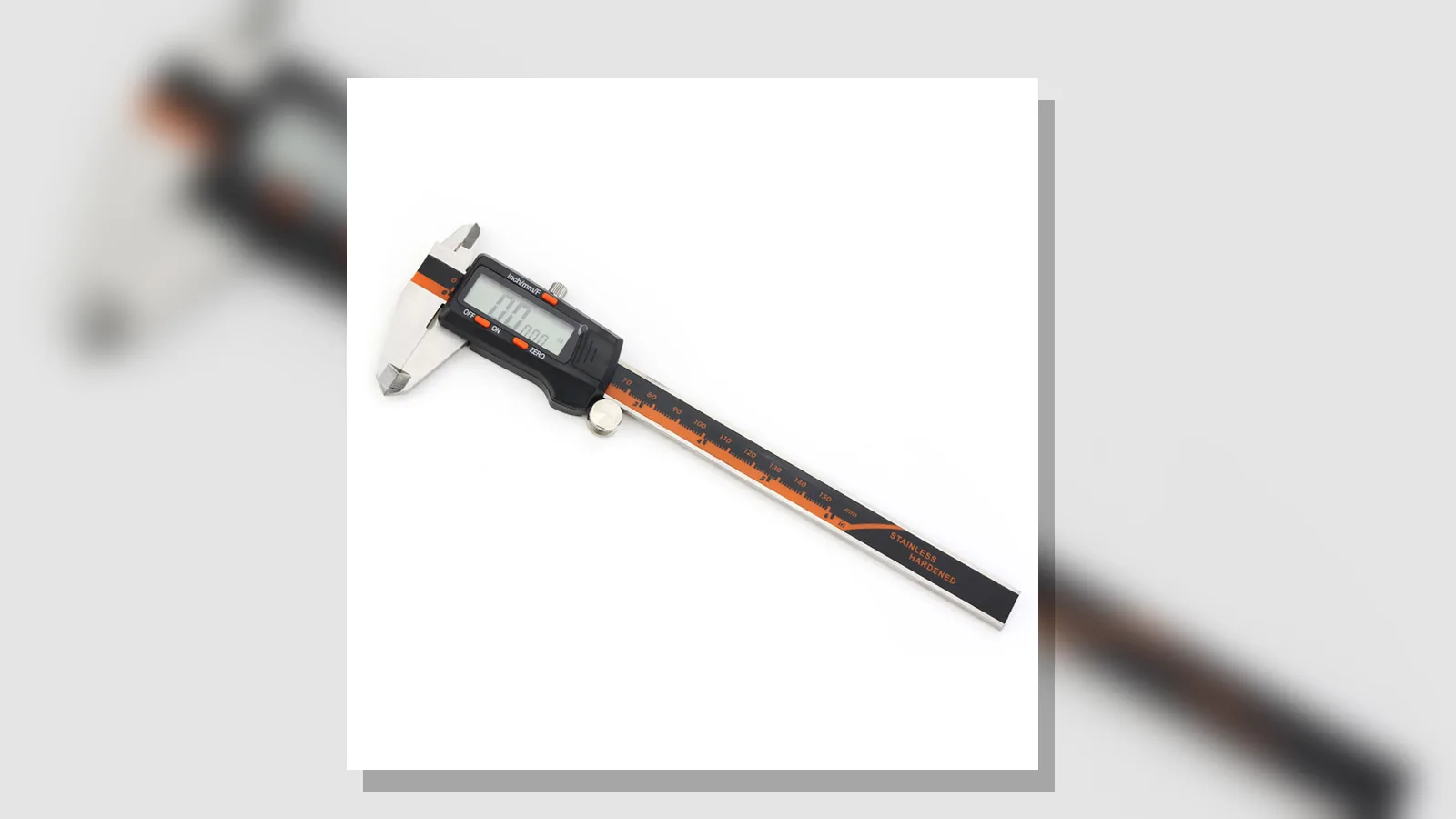

If you need a digital calliper for this job, view the current ACCUMEASURE product details.
For a refresher on inside-jaw measurement, see the RS calipers guide and Watch Obsession's lug-width guide.
