How to measure an o ring with digital caliper: measure an O-ring by inside diameter and cross-section without stretching it

Answer first: identify the ring by clean inside-diameter and cross-section measurements

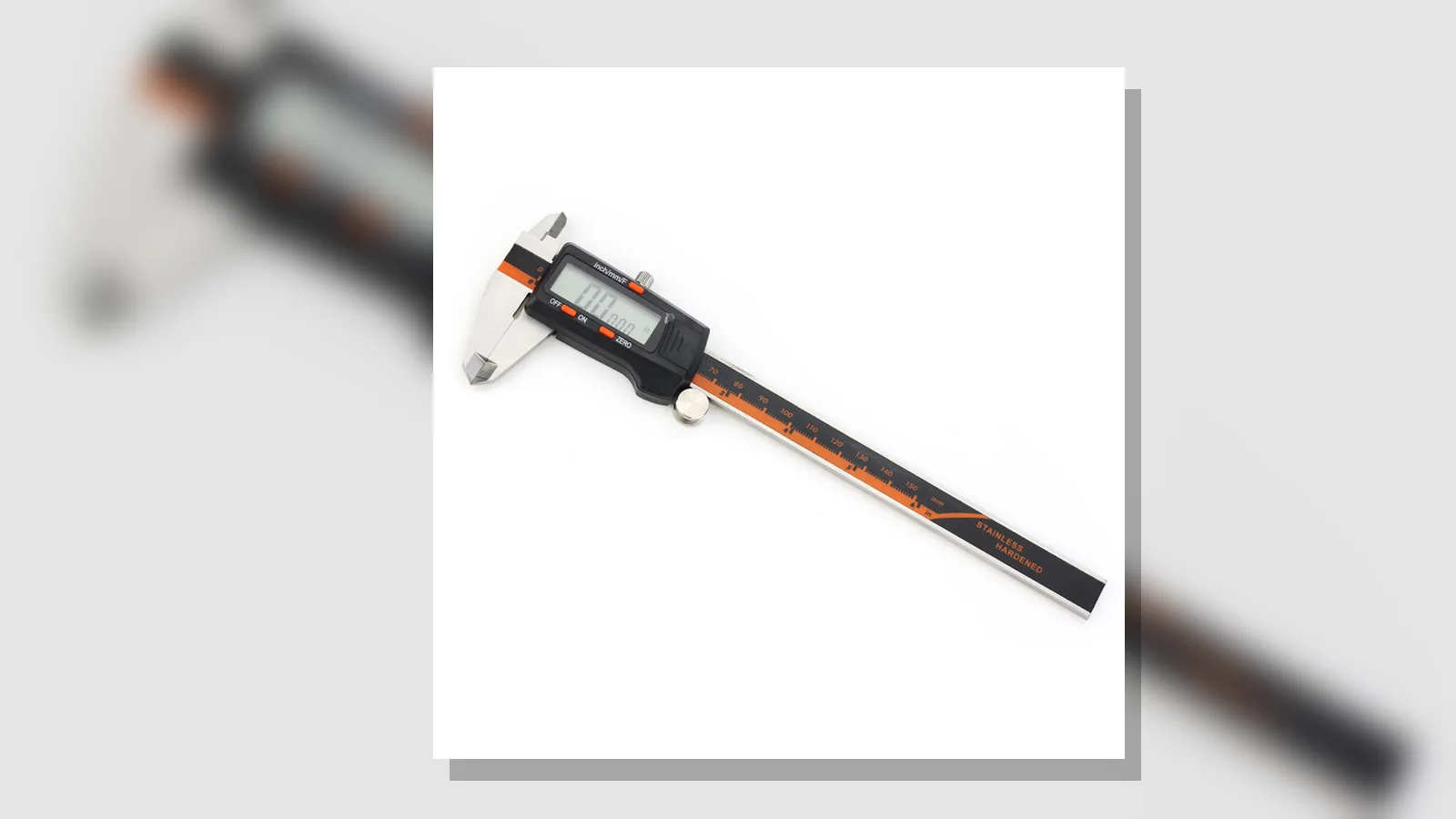

To measure an O-ring with a digital caliper, clean the ring and the measuring faces, set the tool to millimetres and zero it, then take two readings: the inside diameter without stretching the ring and the cross-section with only light contact. Use those dimensions to narrow down the size, then check the material and application separately.

Clean the O-ring and calliper faces and set millimetres and zero

Start with a clean ring and clean jaws so dirt does not change the reading. The British Fluid Power Association O-ring measuring guide advises cleaning and zeroing the vernier before you measure, and NPL's callipers and micrometers guidance covers general calliper care and measurement force.

Measure inside diameter on a flat surface without stretching

Lay the O-ring flat and open the inside jaws gently until they touch the inner edges. Do not pull the ring open, because stretching changes the reading and makes the size harder to match later.

Measure cross-section with only light contact and repeat around a worn ring

Use the outside jaws with only light contact across the thickness of the ring. If the ring looks worn, flattened or uneven, repeat the reading in a few places and keep the most consistent figure as your reference.

Record dimensions before matching a standard size; keep material selection separate

Write down the inside diameter and cross-section before you look for a standard replacement. That gives you a clearer starting point when you compare options, but it does not tell you which material to choose.

Add a stop point for damaged, safety-critical or high-pressure sealing applications

If the O-ring is damaged, or if the seal is for hydraulic, pneumatic, gas, pressure or other safety-critical service, stop at the measuring stage and refer to the equipment and seal-supplier specifications. A quick caliper check can help with general identification, but it does not guarantee a fit or a leak-free result.
